The Presentation tool

The Presentation tool enables Visual Editing for interactive live previews. This is how you set it up within your studio.

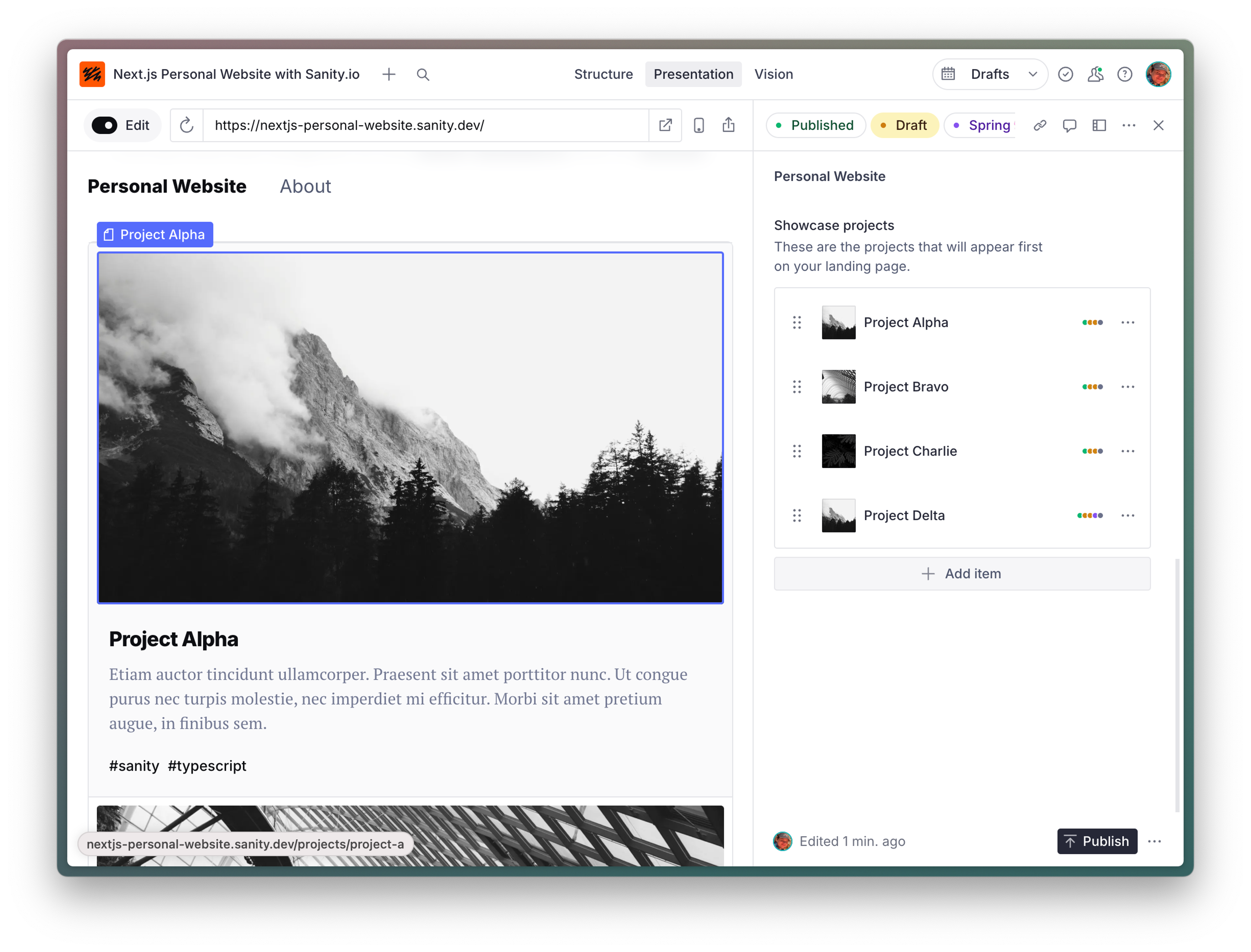

The Presentation Tool enables Visual Editing by integrating a live preview of your web application within Sanity Studio.

It provides:

• Live preview: See draft content updates in real-time within the Studio
• Click-to-edit: Interactive overlays that help content creators find and edit the right fields
• Page building: Advanced capabilities for adding, moving, and removing content sections
• Preview sharing: A way for content creators to share a preview with others
• Locations: Add shortcuts to open preview where a document is used from the Structure tool

For Studio-user friendly documentation, go to the user guide of the Presentation tool.

To use the Presentation tool, your studio must be updated to v3.40.0 or preferably latest.

npm install sanity@latest

Similarly to the other tools and plugins, you add the Presentation tool to your main studio configuration file. The example below shows a typical setup for a Next.js project where specific endpoints are supplied to let Sanity Studio put the front end into preview mode.

• Import presentationTool from sanity/presentation
• Add it to the plugins array
• Add your frontend-specific details, such as the initial URL and endpoints for enabling or disabling preview mode

// sanity.config.ts
// ...all other imports
import { presentationTool } from 'sanity/presentation'

export default defineConfig({
  // ... all other config settings
  plugins: [
    // ...all other plugins
    presentationTool({
      previewUrl: {
        initial: 'https://my-cool-site.com',
        previewMode: {
          enable: '/api/draft-mode/enable',
          disable: '/api/draft-mode/disable',
        },
      },
      allowOrigins: ['http://localhost:*'],
    }),
  ],
})

To map Sanity documents to their corresponding front-end routes, create a resolve.locations configuration. This object tells the Presentation Tool how each document type corresponds to a route in the front end.

In the example below, we map documents of type product to /products/${slug} and add them to the top-level index. You will need to substitute your own types and routes as appropriate.

// ./lib/presentation/resolve.ts
import {defineDocuments, defineLocations} from 'sanity/presentation'

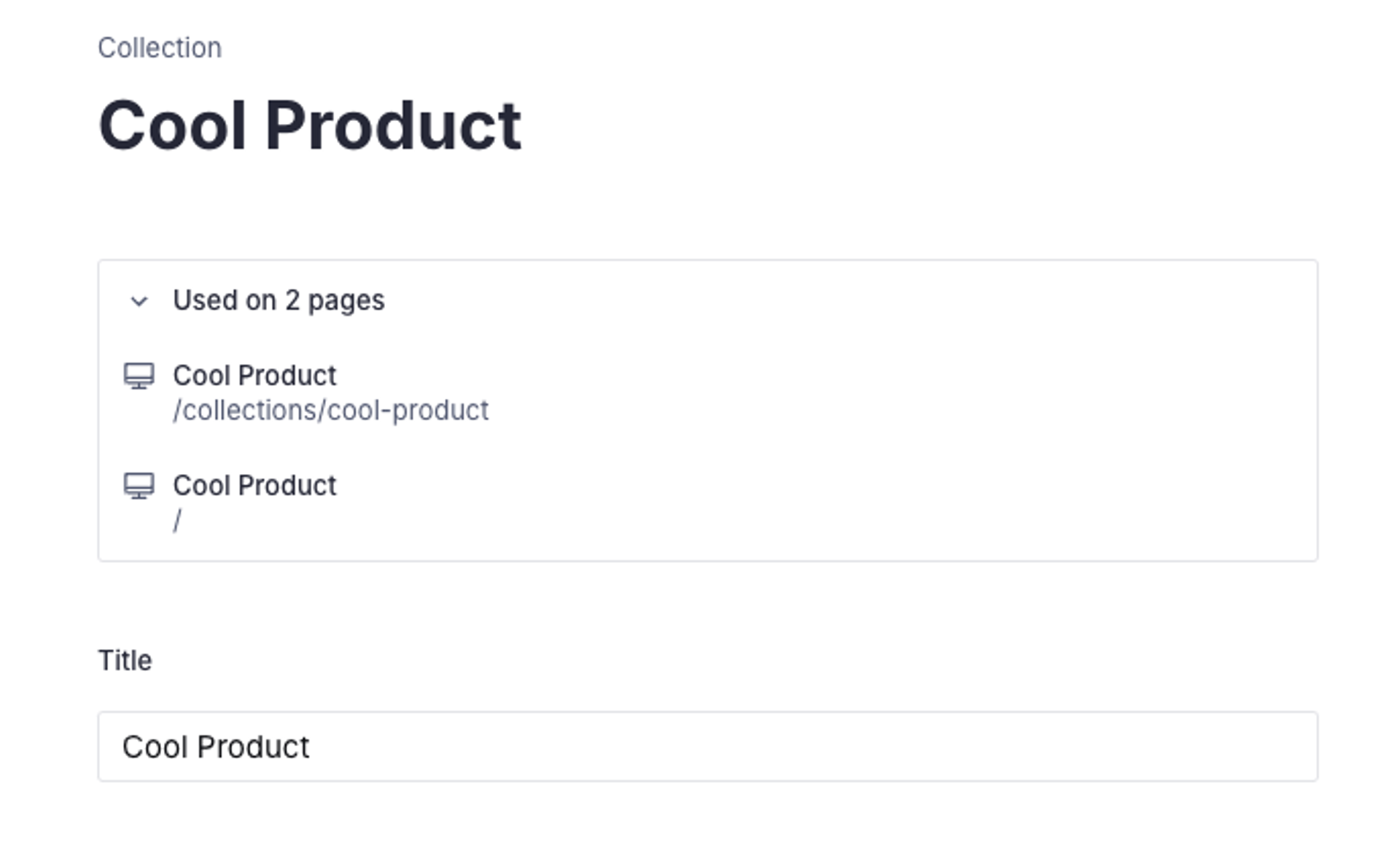

// Configures the "Used on x pages" banner
export const locations = {
  // Map document types to frontend routes
  product: defineLocations({
    select: {title: 'title', slug: 'slug.current'},
    resolve: (doc) => ({
      locations: [
        {title: doc.title, href: `/products/${doc.slug}`},
        {title: 'Products Index', href: `/products`},
      ],
    }),
  }),
  // ...
})

// Configures documents presentation tool should open by default when navigating to an URL
export const mainDocuments = defineDocuments([
  {
    route: '/products/:slug',
    filter: `_type == "product" && slug.current == $slug`,
  },
  // ...
])

import {defineConfig} from 'sanity'
import {presentationTool} from 'sanity/presentation'
import {locations, mainDocuments} from './lib/presentation/resolve'

export default defineConfig({
  // ...
  plugins: [
    presentationTool({
      resolve: {locations, mainDocuments},
      previewUrl: {
        initial: 'https://my-cool-site.com',
        previewMode: {
          enable: '/api/draft-mode/enable',
          disable: '/api/draft-mode/disable',
        },
      },
      allowOrigins: ['http://localhost:*'],
    }),
  ],
})

Sometimes you need multiple allowed origins, like in scenarios where a single studio handles the content many sites or properties. allowOrigins accepts an array of origins that Presentation will recognize.

import {defineConfig} from 'sanity'
import {presentationTool} from 'sanity/presentation'

export default defineConfig({
  plugins: [
    presentationTool({
      allowOrigins: ['https://example.com', 'https//example.store', 'http://localhost:*'],
      previewUrl: {
         initial: 'https://example.com/' // the initial preview URL when there's no `&preview` param in the URL
      }
    }),
  ]
})

You can also provide an async function to configure it dynamically.

import {defineConfig} from 'sanity'
import {presentationTool} from 'sanity/presentation'

export default defineConfig({
  plugins: [
    presentationTool({
      allowOrigins: async ({client, origin}) => {
        // Query known origins from the current dataset with the sanity client.
        const productionDomains = await client.fetch<string[]>(`*[_type == 'market' && _id == $id].domains`, {id: 'europe'})
        // If the studio is running from localhost we also allow Presentation to connect to any localhost instance
        if(origin.startsWith('http://localhost/')) return [...productionDomains, 'http://localhost:*']
        return productionDomains
      },
      previewUrl: {
        // Resolving the initial URL when no search param of the preview URL is present also takes an async function
        initial: async ({client, origin}) => {
          // If the studio is on localhost we assume the Next.js instance is also running
          if(origin.startsWith('http://localhost/')) return 'http://localhost:3000/'
          // Otherwise we pick the first production domain as the initial URL
          return client.fetch<string>(`*[_type ==  'market' && _id == $id].domains[0]`, {id: 'europe'])
        }
      }
    }),
  ]
})

The Presentation tool takes the following configuration attributes:
